Retail Security DR Custom Barcode Labels / EAS Soft Labels 58kHz Frequency OEM

Basic Information
Place of Origin: Guangzhou, China (Mainland)
Brand Name: QIDA
Certification: ISO9001
Model Number: Q005
Minimum Order Quantity: 5000 Piece/Pieces
Price: Get Latest Price
Packaging Details: One carton = 20000 pcs = 5000 pcs x 4 box Carton size:43 x 30 x 25cm One carton weight:14kg
Payment Terms: T/T
Detail Information
Highlight:

print barcode labels

,

custom barcode labels


Product Description

58kHz Retail Security DR Barcode Labeling / EAS Soft Labels OEM Q005


Quick details

Barcode Labeling

Frequency 58kHz

Low Density Polyethylene/Polyester 0.08mm

Up to 2m (8ft) in Dual Pedestal System.



Detailed Product Description

sourcing tag
The Q001 Label provides adequate detection and very high deactivation performance.

sourcing tag
Low-price AM labels are available in a wide range of standard and custom styles and are available in sheets and rolls to accommodate retailers with source-tagging and other in-store product protection requirements.


Electrical Specifications
Frequency : 58kHz
Deactivation : 100%
Operating Distance: Up to 2m (8ft) in Dual Pedestal System.

Materials of Construction
1 . Plastic housing
2 . Resonator
3 . Laminate
4 . Bias
5 . Adhesive
6 . Release Liner
plastic housing : Polystyrene/polyethylene 0.35mm thickness.
resonator(s) : Amorphous alloy material.
Laminate : Low Density Polyethylene / Polyester /Polyethylene 0.12mm
Bias : Semi-hard magnetic material
Laminate : Low Density Polyethylene/Polyester 0.08mm
Adhesive : Double-coated acrylic-based adhesive
Minimum peel strength:≥15 N/25mm
release liner : Double-sided, silicon-coated Kraft liner 0.12mm thick


Product Details:

Frequency

58kHz

label length

45mm ± 0.2mm

label width

10.8mm ± 0.2mm

label thickness (excluding liner)

Maximum1.9mm

label thickness(including liner)

Maximum 2.0mm

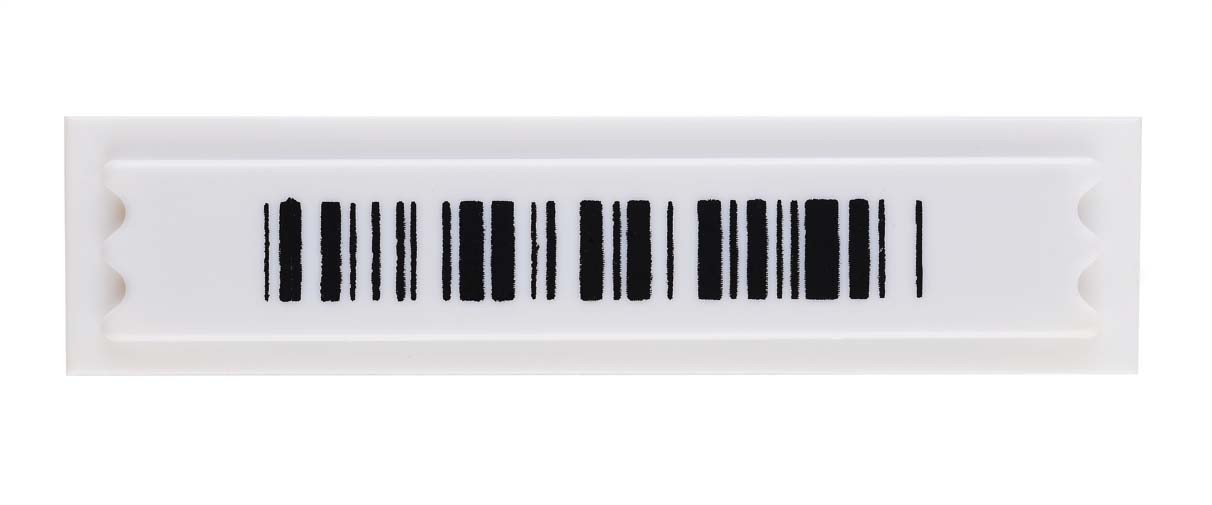

Retail Security DR Custom Barcode Labels / EAS Soft Labels 58kHz Frequency OEM 0

Environmental Constraints
Shelf Life: Two year from date of manufacture when Labels are stored between15-32 (60°F -90°F) and 30-80%RH.

Temperature: Maximum storage temperature not to exceed 50 (122°F) for 96hours at 80% RH.


Humidity: Unaffected by 80% humidity at 50(122°F), up to 96 hours

Usage Instructions
Place in least conspicuous location.
Do not cover warnings, expiration dates or important consumer information.
It is recommended that the surface to which the label is applied be clear and free of all dirt, grease, oil, etc.
Ambient magnetic field of labeled product greater than 100mG may result in reduced label performance.
Label not to exceed temporary magnetic field exposure greater than 8 Gauss.

Retail Security DR Custom Barcode Labels / EAS Soft Labels 58kHz Frequency OEM 1
