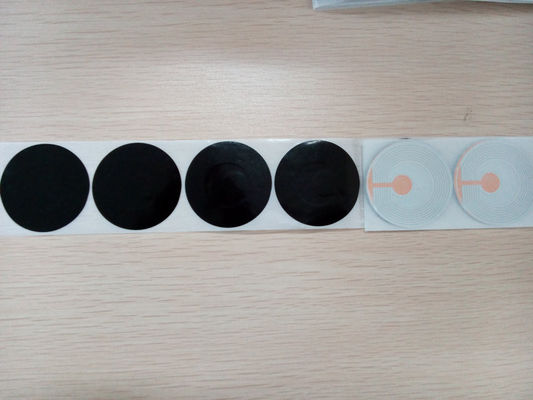

Round EAS Rfid Barcode Labels In Roll 8.2Mhz Security Soft Labels For Checkpoint

Diameter

40mm (1.31’)

Thickness(including liner)

27μm

Thickness(excluding liner)

21μm

Label Spacing

2mm (0.066’)

Substrate

80g/m² glassing paper

Surface

80g/m² thick reinforced paper

Inductor Side

Aluminum

Capacitor Side

Aluminum

Adhesive

Rubber-based, hot melt adhesive

Frequency

8.2MHz±328KHz

Amplitude

Q≥70

Effective Volume

≥2000cm³

Deactivation Strength

0.9A/m—1.5A/m

Operating Distance

1.4m—1.7m

Deactivation Distance

25cm—30cm (0.82’-0.98’)

Shelf Life

Two years from date of manufacture when labels are stored between 10℃-25℃ (50℉-77℉) and 35% to 65% RH

Temperature

Maximum storage temperature not to exceed 50℃ (120℉) for 96 hours at 80% RH

Humidity

Unaffected by 80% humidity up to 96 hours

Application Temperature

Above 0℃-38℃ (32℉-100℉) and 90% RH at the application head

Recommended ambient temperature is 15℃-32℃ (60℉-90℉)

Recommended ambient humidity is 50%-70%

Labels Per Roll

1000 labels

2000 labels

Roll Length

42m (137.8’)

84m (275.6’)

Diameter Inner Core

7.6cm (3’’)

7.6cm (3’’)

Roll Outer Diameter

13.4cm (5.3’’)

18.5cm (7.3’’)

Roll Weight

0.47kg (1.04lb)

0.91kg (2.0lb)

Case Weight

9.8kg (21.6lb)

9.4kg (20.8lb)

Rolls Per Case

20

10

Case Dimension

27cmx27cm

x23.5cm

(0.89’ x0.89’x0.77’)

32cmx32cm

x23.5cm

(1.05’ x1.05’x0.77’)
