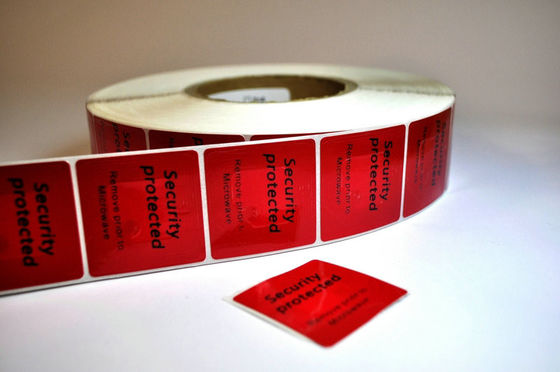

EAS RF Security Labels Aluminum Hot Melt Adhesive / Rubber-Based For Frozen Products

Basic Information
Place of Origin: China
Minimum Order Quantity: 100000pcs
Payment Terms: TT IN ADVANCE
Contact Now
Product Description



Label Dimension Specification

Length

40mm (1.31’)

Width

40mm (1.31’)

Thickness(including liner)

27μm

Thickness(excluding liner)

21μm

Label Spacing

2mm (0.066’)





Material Specifications

Substrate

80g/m2 glassing paper

Surface

80g/m2 thick reinforced paper

Inductor Side

Aluminum

Capacitor Side

Aluminum

Adhesive

Rubber-based, hot melt adhesive






Electrical Specifications

Frequency

8.2MHz±328KHz

Amplitude

Q≥70

Effective Volume

≥2000cm3

Deactivation Strength

0.9A/m—1.5A/m

Operating Distance

1.4m—1.7m

Deactivation Distance

25cm—30cm (0.82’-0.98’)







Environmental Specifications

Shelf Life

Two years from date of manufacture when labels are stored between 10℃-25℃ (50℉-77℉) and 35% to 65% RH

Temperature

Maximum storage temperature not to exceed 50℃ (120℉) for 96 hours at 80% RH

Humidity

Unaffected by 80% humidity up to 96 hours






Roll Specifications

Labels Per Roll

1000 labels

2000 labels

Roll Length

42m (137.8’)

84m (275.6’)

Diameter Inner Core

7.6cm (3’’)

7.6cm (3’’)

Roll Outer Diameter

14.8cm (5.8’’)

18.8cm (7.4’’)

Roll Weight

0.54kg (1.19lb)

1.07kg (2.36lb)

Case Weight

11.7kg (25.8lb)

11.0kg (24.3lb)

Rolls Per Case

20

10

Case Dimension

27cmx27cm

x23.5cm

(0.89’ x0.89’x0.77’)

32cmx32cm

x23.5cm

(1.05’ x1.05’x0.77’)
